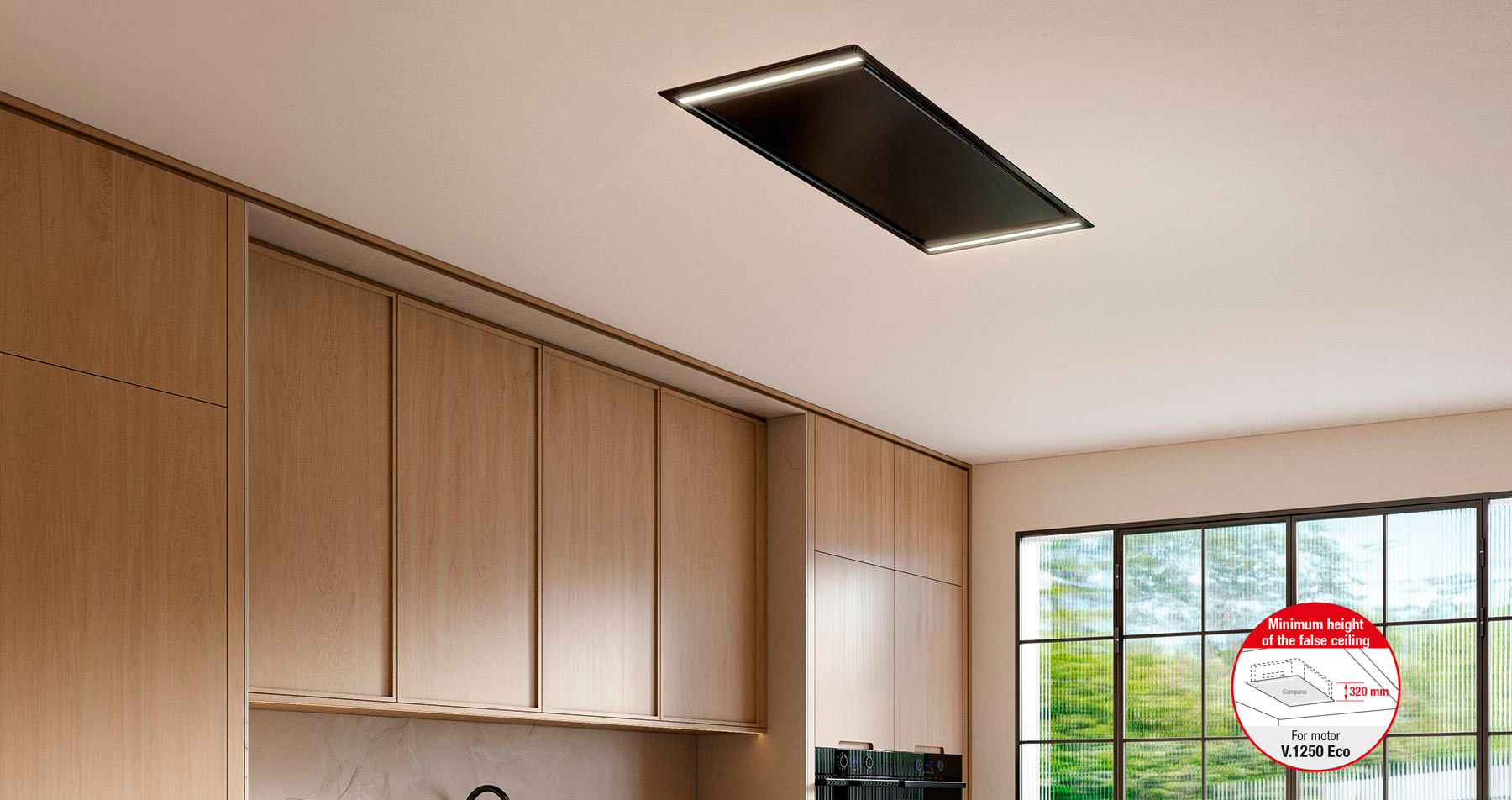

E-297

Technical Features

Features

Hood available in 95 and 120 cm width
Available in stainless steel, black or Epoxy white enamel Ral 9003 with white glass
This model can be manufactured WITHOUT LIGHTING (on request)

A+ Energy Classification
Airlink - Compatible Model
Aluminum filters
ECO PLUS
Last Time Function
Led 4000K
LED Lighting
SIA Safety
Touch remote control

Motors

Optional

Notes

Notes:

This model with the V.2450 duct-in-line remote motor and V.2350 roof motor system comes with 5 m of S.E.C. fume extractor flue as standard System®, interior Ø 203 mm and exterior Ø 253.
Option of changing the original LED for a 3000K (*) warm light LED – Optional change only possible in factory
See final section on features and recommendations for the ceiling hoods.
Airlink optional. Model compatible with the AirLink Pando system

Download Area

Image gallery

Technical Drawings

Product Sheet & Energy Label by models

Ref.	Front. (cm)	Color / Couleur	Motor	Ø tubo mm	Clase Energética/Energy Label
09800.A	90	Inox / Stainless steel	Interior/Intérieur V.1130 eco PLUS	150	+info
10098	120	Inox / Stainless steel	Interior/Intérieur V.1130 eco PLUS	150	+info
9836	90	Inox / Stainless steel	Intermedio Exterior/Deporté/Duct-in-line remote V.1550 eco	150	+info
9837	90	Inox / Stainless steel	Intermedio Exterior/Deporté/Duct-in-line remote V.2450 eco	200	+info
10067	120	Inox / Stainless steel	Intermedio Exterior/Deporté/Duct-in-line remote V.1550 eco	150	+info
10068	120	Inox / Stainless steel	Intermedio Exterior/Deporté/Duct-in-line remote V.2450 eco	200	+info
9838	90	Inox / Stainless steel	Tejado/Toiture/Roof V.2350 eco	200	+info
10069	120	Inox / Stainless steel	Tejado/Toiture/Roof V.2350 eco	200	+info
09801.A	90	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Interior/Intérieur V.1130 eco PLUS	150	+info
10099	120	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Interior/Intérieur V.1130 eco PLUS	150	+info
9839	90	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Intermedio Exterior/Deporté/Duct-in-line remote V.1550 eco	150	+info
9840	90	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Intermedio Exterior/Deporté/Duct-in-line remote V.2450 eco	200	+info
10070	120	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Intermedio Exterior/Deporté/Duct-in-line remote V.1550 eco	150	+info
10071	120	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Intermedio Exterior/Deporté/Duct-in-line remote V.2450 eco	200	+info
9841	90	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Tejado/Toiture/Roof V.2350 eco	200	+info
10072	120	Cristal blanco brillo / Verre blanc brillant / Glassy white glass	Tejado/Toiture/Roof V.2350 eco	200	+info
09982.A	90	Negro / Noir / Black	Interior/Intérieur V.1130 eco PLUS	150	+info
10073	120	Negro / Noir / Black	Interior/Intérieur V.1130 eco PLUS	150	+info

Features and recommendations for ceiling-mounted hoods.

Project Technical Study

In order to ensure that your project does not come up against any unexpected difficulties, Pando requires that you send us a Technical Study with very specific details to ensure the product works successfully.

Download: Project Technical Study Form

Features and recommendations

FORM OF THE CEILING: The “ideal” ceiling to install these hood units must be completely unobstructed and flat over all of its surface. If for design reasons you choose to have different heights or steps in the ceiling, it must be ensured that the area where the hood is to be fitted is completely flat and covers as wide an area as possible, to avoid any suction losses (you must send us a plan to determine whether the surrounding ceiling is suitable).

CEILING HEIGHT: The recommended distance between the floor and the hood is a maximum of 2.50 m. For greater heights consult our Technical Division.

POSITION OF THE HOOD: The hood must be centred over the cooking area.

AIR INTAKE GRILLE: To ensure optimum suction by the hood it is essential that the kitchen has a constant inward flow of air; a ventilation grille at floor level is the perfect solution for this.

INSTALLING THE FLUE PIPE: We strongly recommend that you use S.E.C. System^® fume extractor flue pipes from Pando, as these considerably improve convenience in use and the soundproofing of the unit.

INCLUDED: All units with V.2450 Exterior and V.2350 Roof motors come with 5 m of S.E.C. System® fume extractor flue with interior Ø 203 mm and exterior Ø 253 mm as standard.

OPTIONAL NEW FEATURE: BUTTON PANEL SET FOR EMBEDDING IN WALL.
Available in stainless steel or epoxy white enamel

All ceiling-mounted hoods can now optionally feature a control button panel for the hood set into the wall. The system comes with up to 10 m of cabling as standard.

Important: The panel set for embedding in Wall can be ordered only with the hood ( same order)
